Revolution occurs in the measurement of “ions”!
Air ion counter with the global market as its target!
|
 |
Remarkable merchandise |
|
Counter used by the air ion researchers all
over the world. It expresses the air ions that are undistinguishable by naked
eyes in data mode, at your own discretion.
A single key only can achieve the shifting
measurement of negative and positive ions! With performance even higher than
that of costly machines! Low price!
|
Selling price: host machine 69,800 yen (tax not included)
Made by Andes Electric
|
Merits of the product
It can achieve the + / - ion measurement shifting with a single key
(patent being applied for)
Unique structure, small volume, light mass
(patent being applied for)
It can measure a large extent of ion quantity
(with the automatic range shifting)
It can accurately measure the low-concentration negative ions quantity
(carrying Lo mode)
Understandable liquid crystal display of menu measurement charts,
with + / - ions clear at a glance.
It can save the measured data.
(As a maximum, it can save the data of 30 minutes for 15 times.)
It can also indicate the date,
time and humidity when the measurement is performed.
It can be connected simply with PC.
Remote operation and modulization can be realized.
|
|
| Item |
Specification / Dimensions |
| External dimensions of the host machine |
Maximum dimensions: Width 80mm × length
180mm × height 35mm |
| Weight of the host machine |
Below 400g |
| Maximum power consumption |
Below 2.1W |
| Duration of the cell |
Continuously measure for more than 4
hours (when it is fully charged and the background light goes off) |
| Measurement object ions |
Air ions (cations /anions) |
| Sizes of the object ions |
nm-level small ions |
| Ion measurement extent |
10~1,236,000 ions/cc |
| Measurement inspection time |
Approx. 0.25 s/time |
| Data record capacity |
Maximum 27,000 data
(ions quantity, temperature, humidity, time, date) |
| Display |
TN liquid crystal (attached with background light, semipermeable type) |
| Warranty period of the product |
1 year |
| Application environmental conditions |
5~35℃ 85%RH and below (without dew) |
| Options |
Application software (attached with communication cables)
Portable articles (portable kit, measurement stand (tripod), measurement
materials)
|
|
|
|

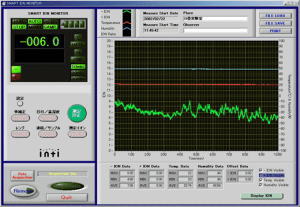

Options : Application software
・remote operation counter
・read and display all the data saved in the counter
・display the quantity of the negative ions, the quantity of the positive
ions, time, temperature, relative humidity
・can save any data in the form of files (and can also add comments)
・can print through a printer
corresponding machine type: DOS/V machine |
|
